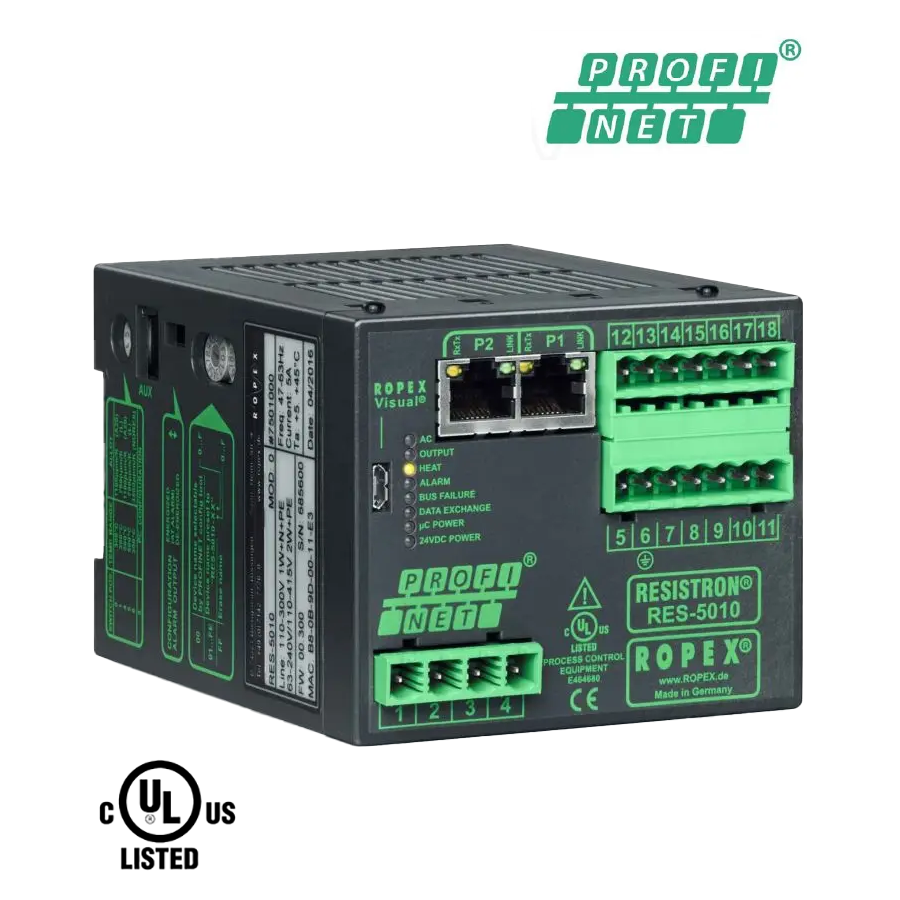

The ROPEX Resistron RES-5010 controller utilizes microprocessor technology for sensorless, closed-loop control of impulse heating elements. The ROPEX RES-5010 is designed for simple plug-in system integration.

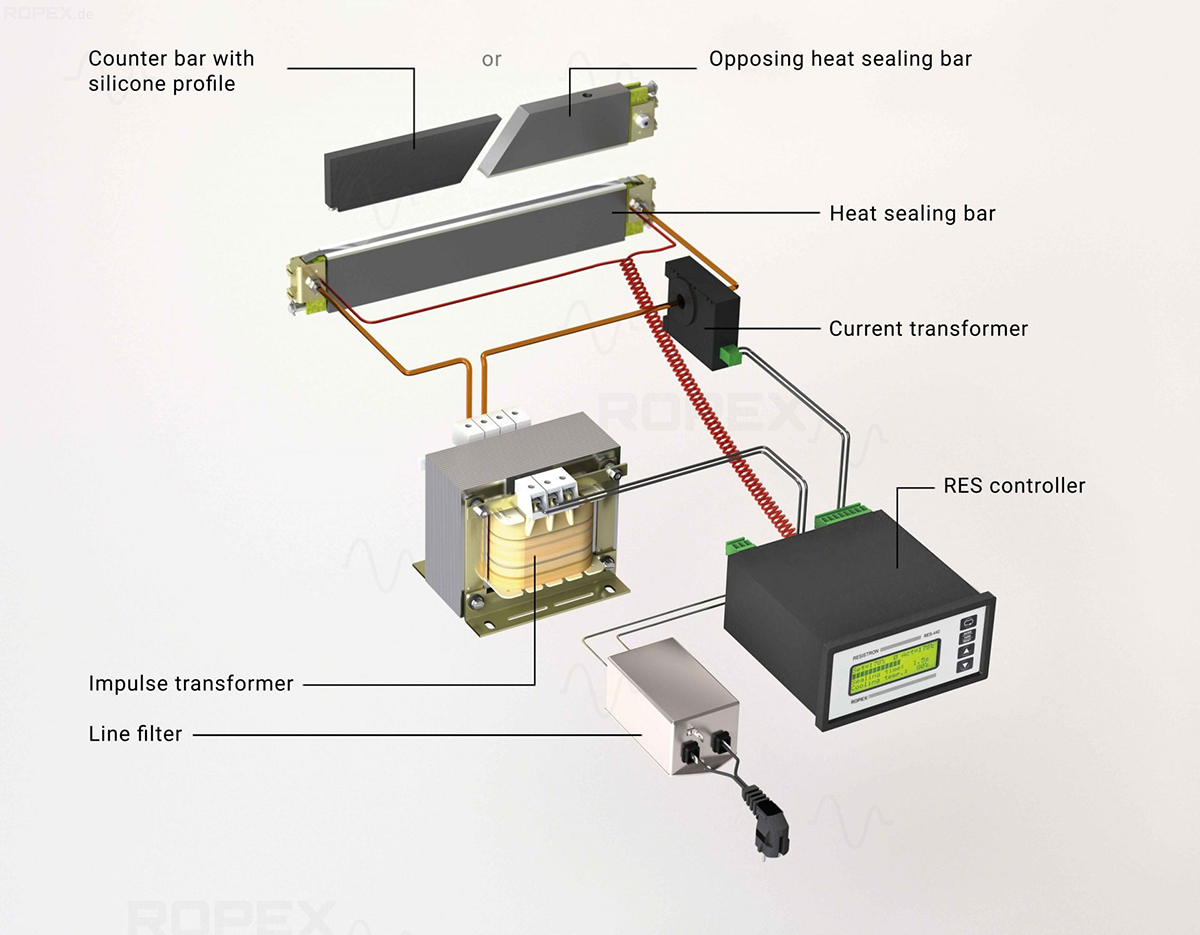

The use of ROPEX Resistron controls goes beyond impulse heat sealers, form fill machines, and converting equipment. ROPEX Resistron controllers provide a solution for an extensive range of heating applications:

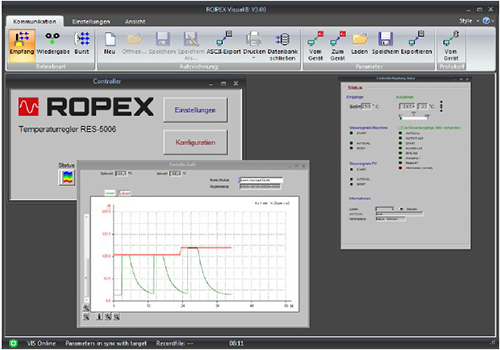

ROPEX Visual® enables you to connect directly to the RES-5010 Resistron controller via Micro-USB, giving you direct access to controller settings and error codes.
- Ropex RES-5010 Features:
- PLC interface, complete control via PROFINET interface (2 x RJ-45)
- UL file E464680
- Analog output 0…10 VDC for ACTUAL temperature
- Automatic zero calibration (AUTOCAL)
- Automatic secondary voltage and current configuration
- Automatic phase angle compensation (AUTOCOMP)
- Automatic frequency adjustment
- Booster terminal as standard
- Selectable heatseal band temperature range (up to 500°C)
- Selectable heatseal band alloy (A20 (Alloy-20), A20L, Low-Ex, etc. ...)
- Free ROPEX Visual® Windows PC software
- Ropex RES-5010 Part Numbers:
- Power Supply 110...480 VAC
- Ropex Resistron RES-5010/110...480 VAC
- Ropex Part No. 7501000
- Ropex Accessories:
- Line filter: LF-06480, LF-10520, LF20520, LF30520, LF50520
- Booster: B-075480, B100480
- Current transformer: PEX-W5
- Current transformer high busbar: HCB-1
- Impulse Power Transformer: TR-X
- Twisted Cable (RES voltage measurement cable): UML
- High Current Cable (RES current load cables): C-TC
Our engineering team members have a diverse background and extensive industry experience. We offer full engineering support for new applications and upgrades. We will work with you to design a complete system tailored to your application.
Please visit our website www.forceglobal.com to view the full range of ROPEX Resistron controllers, and components.
Or call us directly (414) 507-9378 to discuss your impulse heat-sealing needs.
We look forward to working with you!
